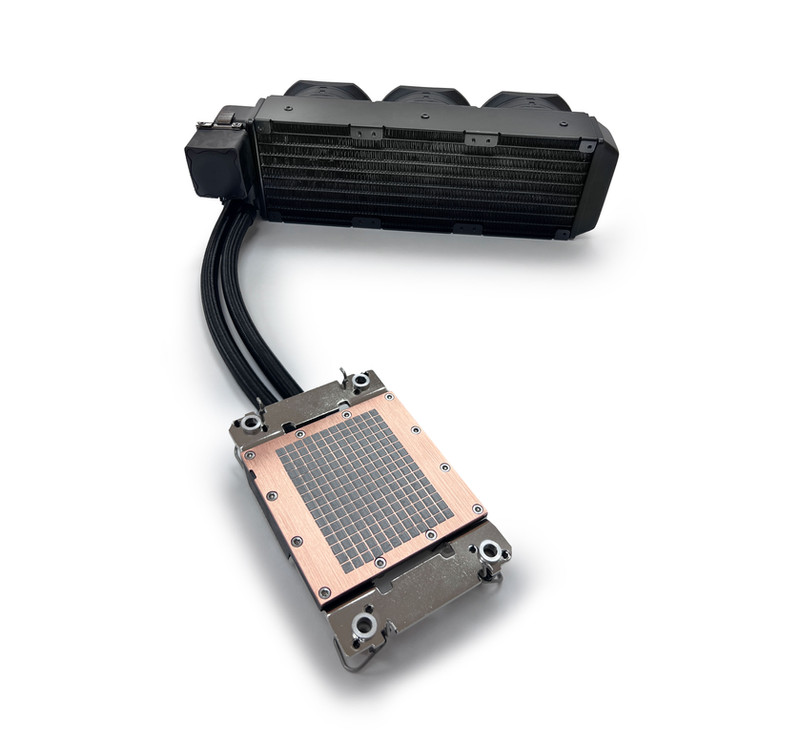

Specifications
| CPU Support | Intel Granite Rapid SP, Intel Xeon 6 |
| Power Consumption | At Duty Cycle 0~20%: 1.2 W, At Duty Cycle 50%: 5.52 W, At Duty Cycle 100%: 24.72 W |
| Form Factor | 2U Server and up |
| CPU Socket | LGA4710 |
| Maximum TDP Support | 600W |
| Fan Dimension | 80 x 80 x 38 mm |
| Fan Speed | At Duty Cycle 0~20%: 2400±10% RPM, At Duty Cycle 50%: 4800±10% RPM, At Duty Cycle 100%: 8000±10% RPM |
| Bearing Type | Dual Ball |
| Rated Voltage | 12V |
| Air Flow | At Duty Cycle 0~20%: 35.52 CFM, At Duty Cycle 50%: 67.24 CFM, At Duty Cycle 100%: 115.61 CFM |
| Noise Level | At Duty Cycle 0~20%: 25.63 dBA, At Duty Cycle 50%: 47.85 dBA, At Duty Cycle 100%: 64.40 dBA |
| Static Pressure | At Duty Cycle 0~20%: 1.39 mm-H2O, At Duty Cycle 50%: 5.97 mm-H2O, At Duty Cycle 100%: 34.06 mm-H2O |
| Lead Wire Pin Out | Pin#1- Black(-) Pin#4- Blue(PWM) |
| Fan Life Expectancy | 70,000 Hours |
| Screw Type | #8-32 |
| Installation Torque | 8 in-lb |
| Operating Temperature | 40°C or 104°F |
| Cold Plate Dimension | 118 x 78 x 22.8 mm |
| Radiator Dimension | 297.4 x 82.0 x 83.5 mm |
| Pump Power Consumption | 7.2W |
| Thermal Compound | Shin-Etsu X23-8079-2 Pre-Printed on Base |
| Water Pump Flow Rate | 2.9 Liter Per Minute |
| Tube Length | 300 mm |
| Tube Material | Black Pair EPDM |
| Number of Fans | 2 |
